Product Details

• Two different designs available Fix bracket / Adjustable bracket
• All brackets are available in MS powder coated for general purpose and
  SS316 graded material for high corrosion resistance.
• 4-20 mA signal transmitter options
• IP 68 Up to 2m 1 hour with lab certified as per IS/IEC 60529 : 2001

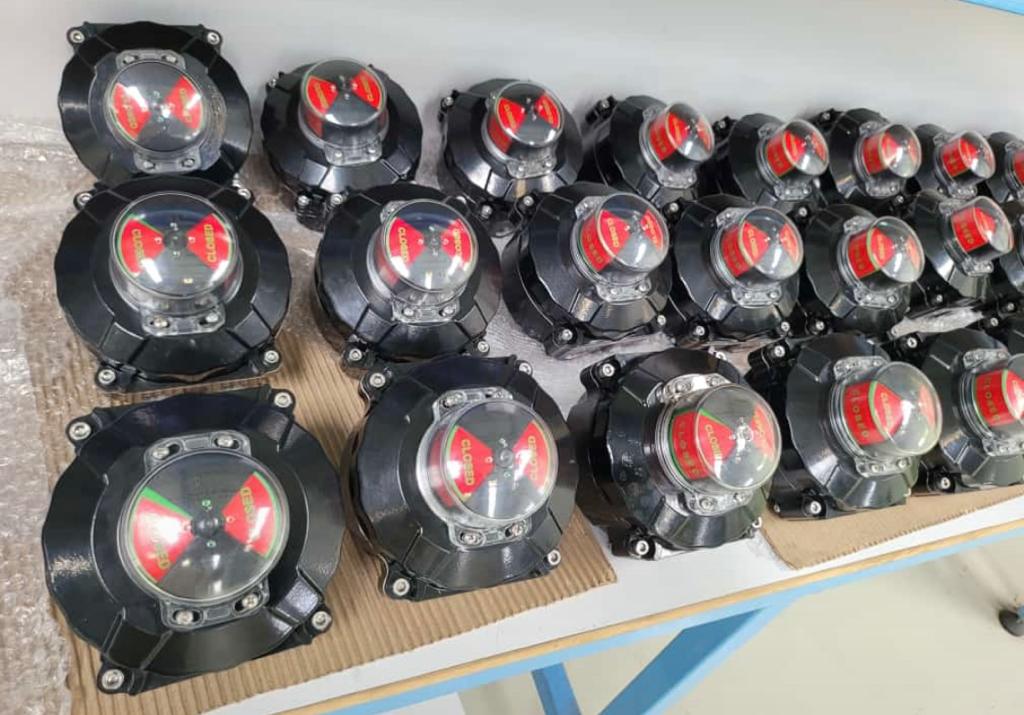

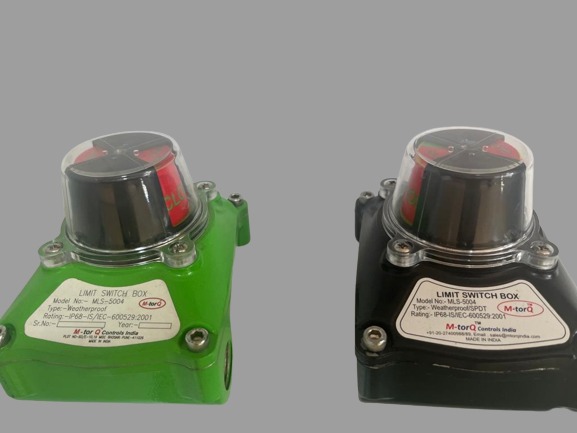

• Limit switch box with Stainless steel 304 / 316 nameplate
• HDocumentation : English standard.
• Documentation : English standard.
• Temperature range :
  • Ambient Temperature: -20°C to +55°C (-4 to 131°F) (T6)
  • Operating Temperature: -40°C to +85°C
• Approvals : ATEX, IECEx, EAC,CCOE/PESO, SIL certified up to SIL 3 (Sensors)
